Baking Equipment

3 Decks 6 Trays

Vertical Capacity, Professional Gas Precision

Maximize your production output within a compact footprint with the Rasbake RDG-306. This three-deck, six-tray gas oven combines independent stainless steel burners with an adjustable blower system, delivering rapid LPG heating and consistent artisan results across all levels.

1 Deck 3 Trays
RDG-103
1 Deck 2 Trays
RDG-102
1 Deck 1 Tray
RDG-101

Overview

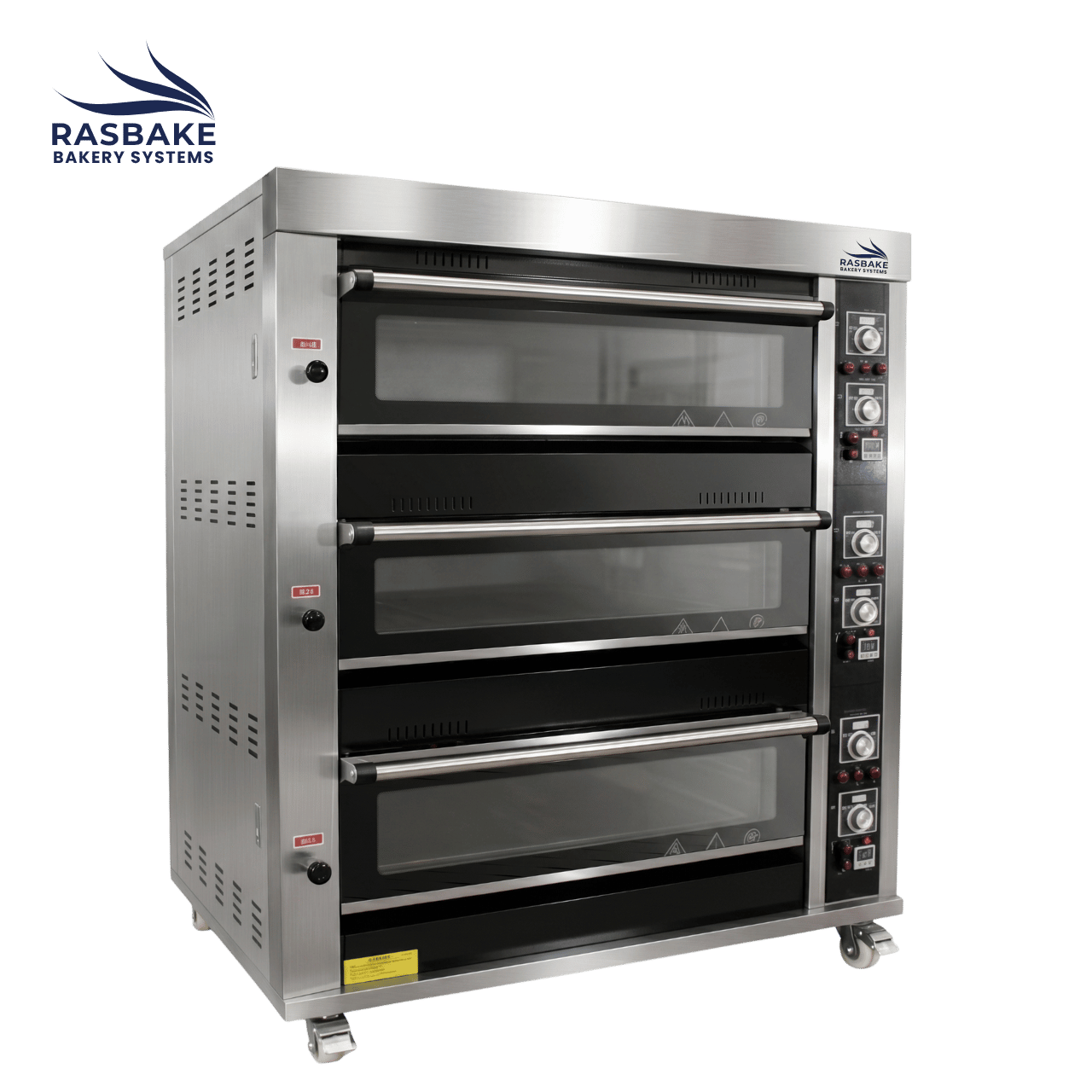

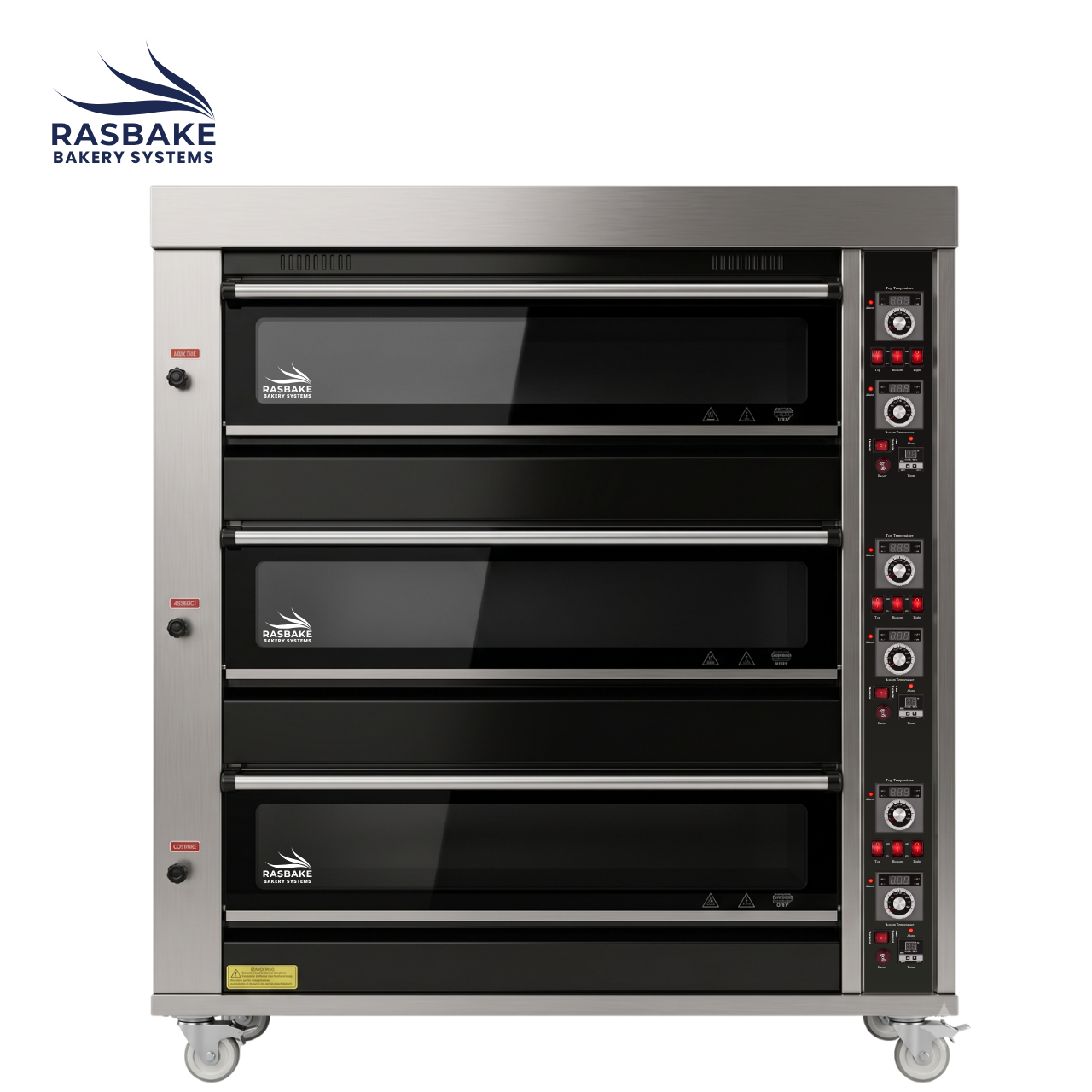

The Rasbake RDG-306 Gas Deck Oven is engineered for high-yield commercial baking, offering a robust 3-deck, 6-tray configuration that optimizes vertical space. Designed with a premium 0.6mm brushed stainless steel front and a modern ergonomic oblique layout, it delivers both a sophisticated industrial aesthetic and uncompromising technical accuracy. Each deck features independent burner controls and a waterproof power switch, allowing operators to manage temperatures up to 400°C and utilize integrated 0–99 minute timers for absolute batch consistency.

Technical Specifications

Capacity 3 Decks, 6 Trays (400 x 600 mm)
External Dimensions 1280 x 900 x 1750 mm
Chamber Dimensions (per deck) 870 x 630 x 225 mm
Power & Fuel Requirements 0.3 kW | 220V/50Hz | Fuel: LPG
Temperature Range Room Temp – 400°C
Timer Range 0–99 Minutes
Build 0.6mm Stainless Steel Front / 0.5mm Galvanized Sides
Weight 266 kg

Key Features

▸ Precision Multi-Deck Heating

Independent top and bottom stainless steel burners in every deck for exacting control over crust and base development.

▸ Superior Thermal Efficiency

Uniform heat electrolytic chambers reinforced with iron sheets and high-grade door sealing for maximum heat retention during gas combustion.

▸ Advanced Airflow

Adjustable side-plate blower fans maintain a consistent temperature profile across all three chambers.

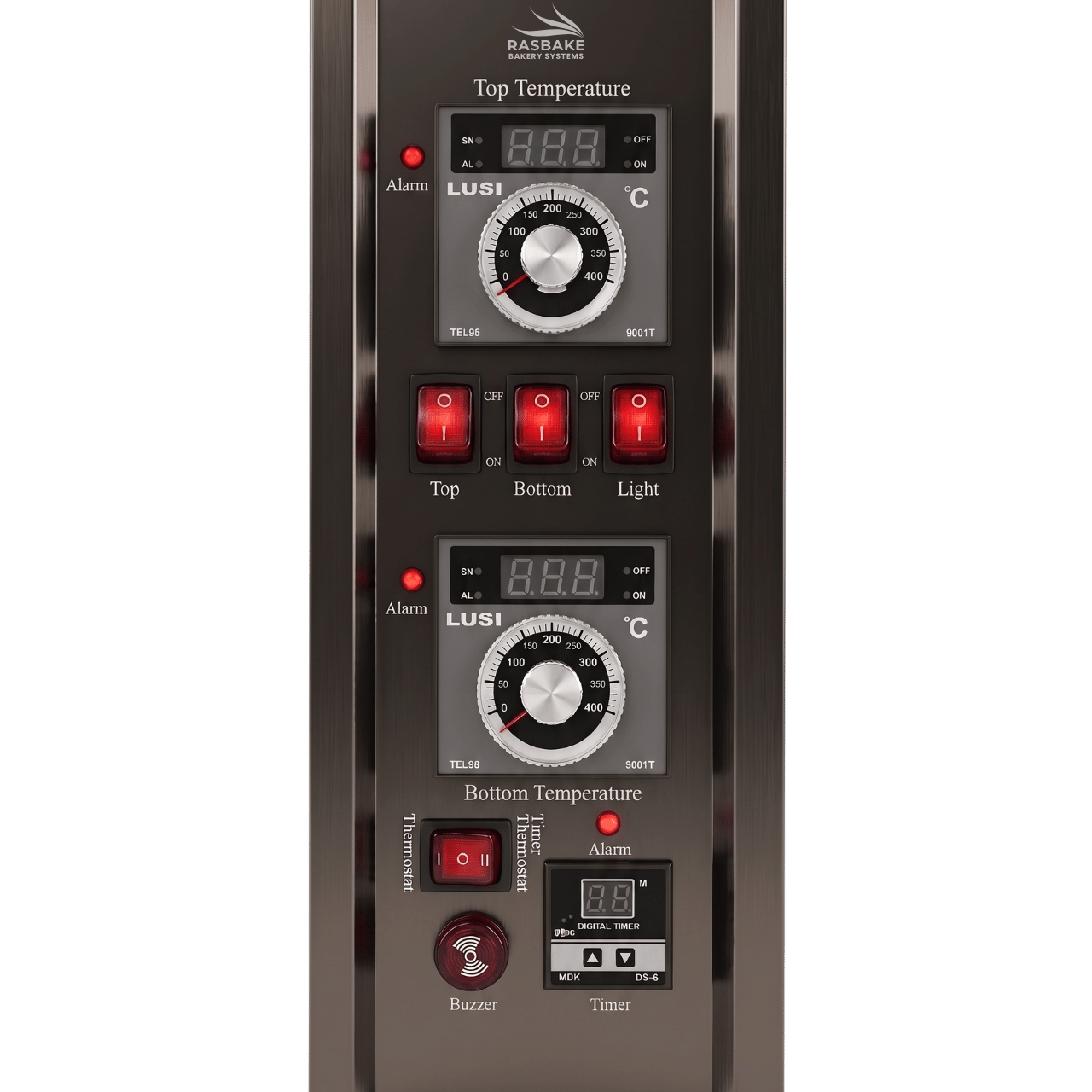

▸ Ergonomic Operation

Large glass viewing windows and an oblique control design for effortless product monitoring and parameter adjustments.

▸ Commercial Reliability

Equipped with integrated overheat protection, a side lock mechanism, and waterproof power switches for safe, continuous use.

Ideal Applications

Perfect for high-volume artisan bakeries, busy commercial kitchens, and multi-unit cafes requiring maximum vertical tray capacity, the rapid heating power of LPG, and precise independent deck control.
