Baking Equipment

3 Decks 18 Trays

Unrivaled Industrial Capacity

Scale your operations to the absolute highest level with the Rasbake RDG-3018. Our largest gas deck oven boasts a massive three-deck, eighteen-tray capacity housed in a heavy-duty 0.8mm full stainless steel chassis, delivering uncompromising uniform heating and rapid LPG recovery for maximum commercial output.

1 Deck 3 Trays
RDG-103
1 Deck 2 Trays
RDG-102
1 Deck 1 Tray
RDG-101

Overview

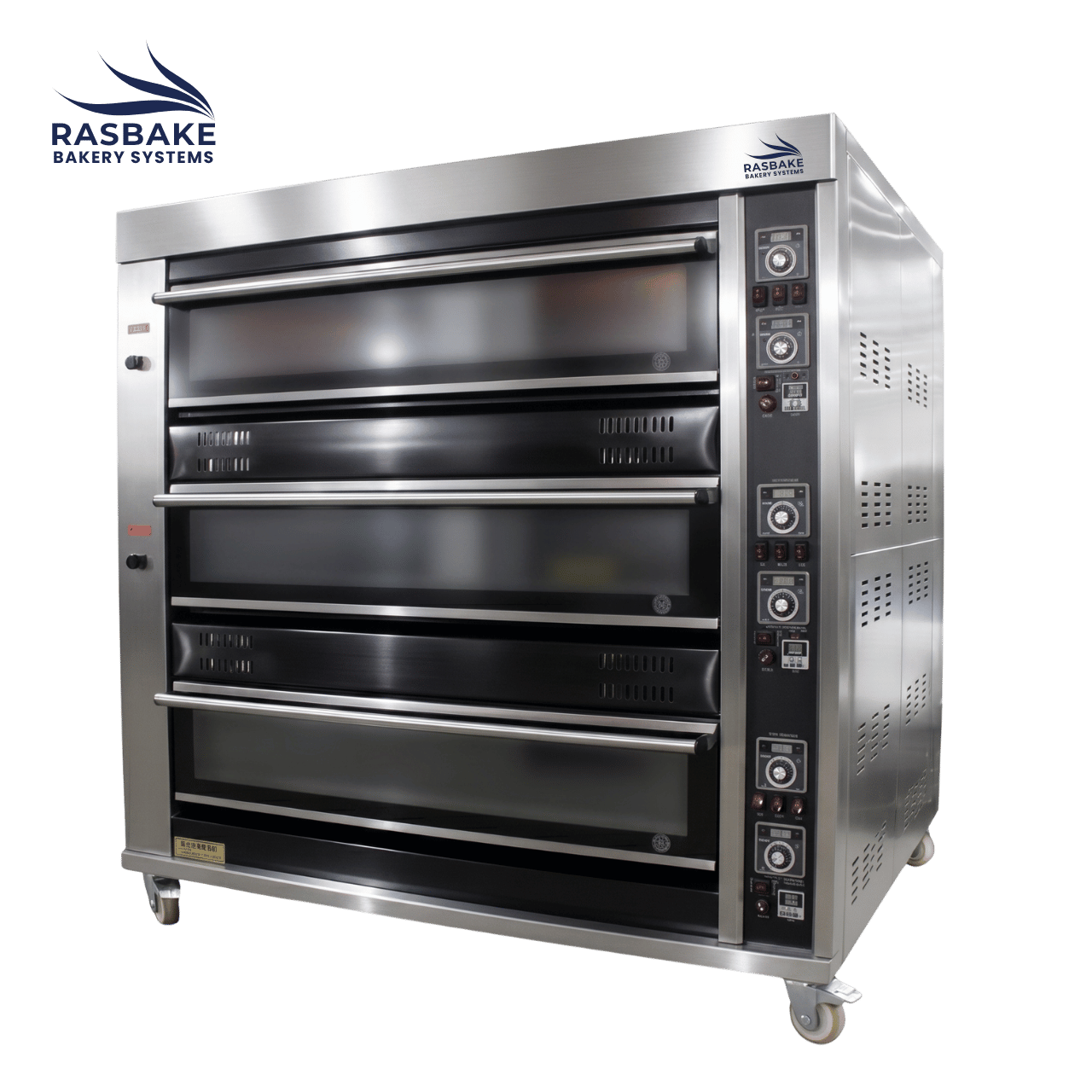

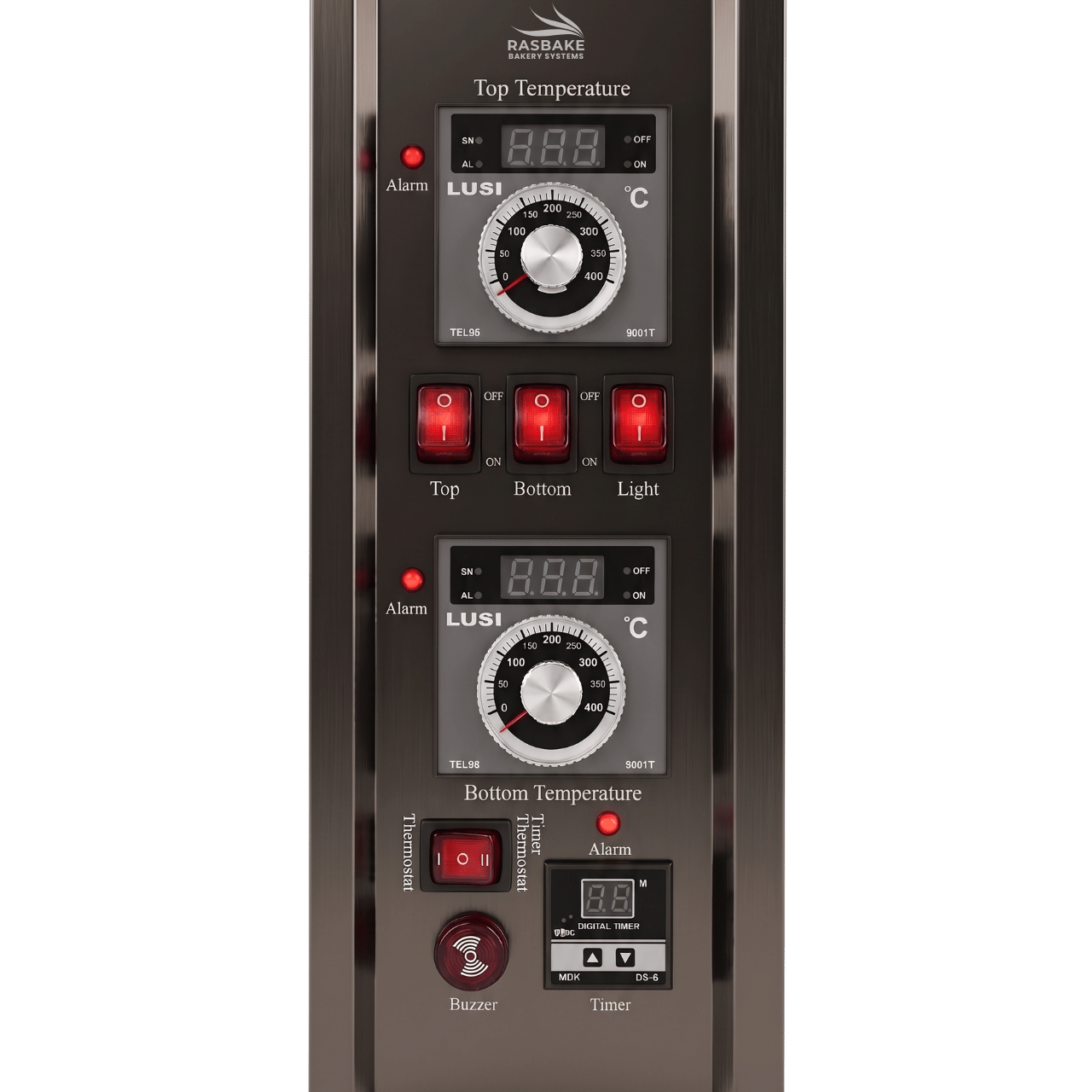

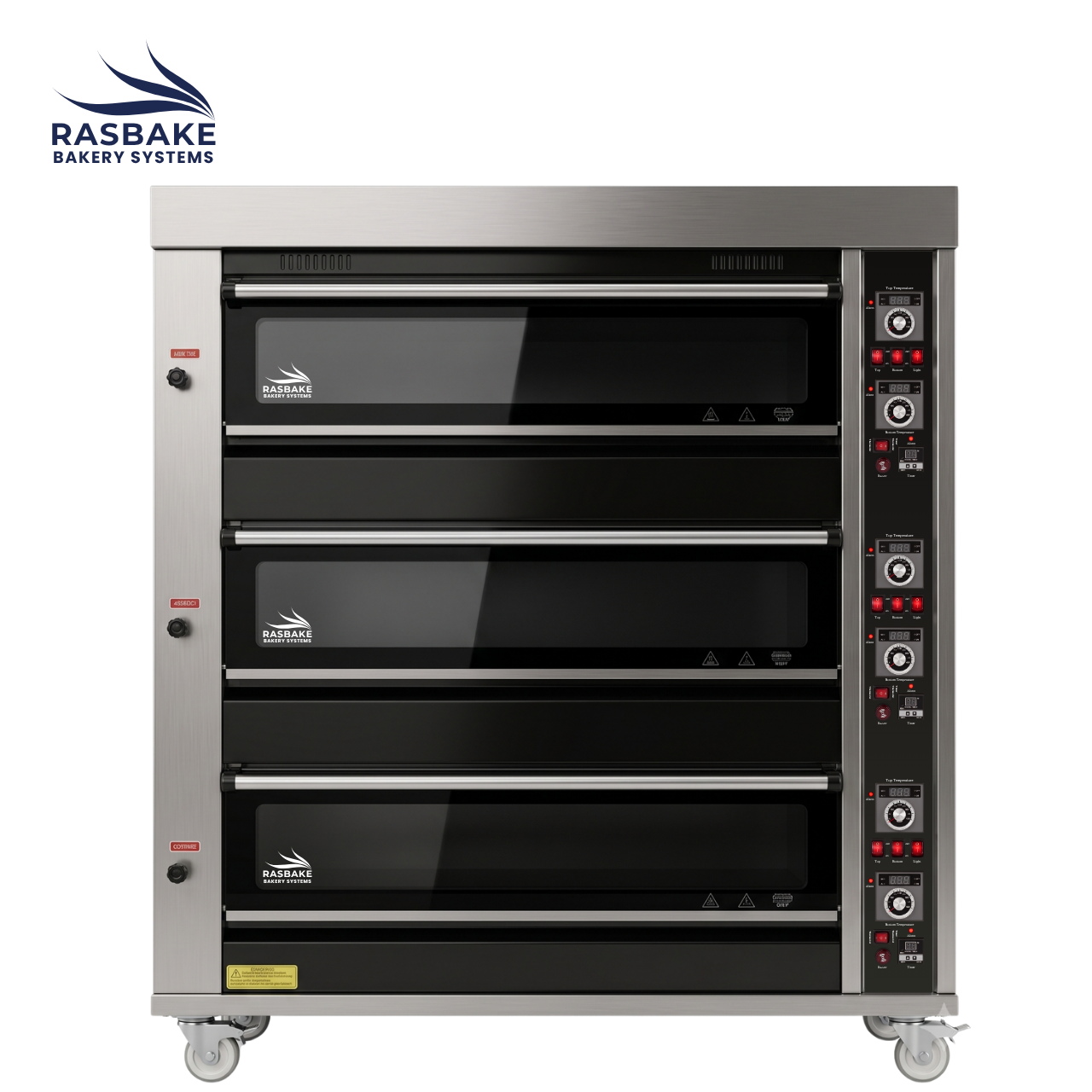

The Rasbake RDG-3018 Gas Deck Oven is the pinnacle of industrial baking, offering an unmatched 3-deck, 18-tray configuration designed to handle the most extreme commercial demands. Housed entirely in an upgraded, heavy-duty 0.8mm full stainless steel chassis, it seamlessly blends a premium, minimal industrial aesthetic with unyielding durability. The technically precise control panel features an ergonomic oblique layout and waterproof power switches, empowering operators to independently manage each deck’s temperature up to 400°C and utilize the intense heating power of LPG for absolute consistency across enormous, non-stop batches.

Technical Specifications

Capacity 3 Decks, 18 Trays (400 x 600 mm)
External Dimensions 1715 x 1495 x 1750 mm
Chamber Dimensions (per deck) 1310 x 1250 x 225 mm
Power Requirements 0.6 kW | 220V/50Hz
Fuel Type LPG
Temperature Range Room Temp – 400°C
Build 0.8mm Full Stainless Steel
Weight 672 kg

Key Features

▸ Double Burner System

Independent top and bottom double stainless steel burners in every deck provide intense, even heat distribution for massive volume.

▸ Upgraded Construction

Full 0.8mm stainless steel build ensures maximum structural integrity and a high-end European-inspired finish.

▸ Thermal Efficiency

Uniform heat electrolytic chambers reinforced with iron sheets and high-grade door sealing maximize heat retention and energy efficiency.

▸ Advanced Airflow

Adjustable side-plate blower fans maintain a perfectly balanced temperature profile across all three massive chambers.

▸ Ergonomic Design

Features large glass viewing windows and an oblique control layout for effortless product monitoring and precision operation.

▸ Commercial Safety

Equipped with integrated overheat protection, a side lock mechanism, and waterproof power switches for safe, continuous industrial use.

Ideal Applications

Engineered specifically for the largest wholesale bakeries, major commercial commissaries, and massive industrial food production facilities requiring enormous vertical tray capacity, the intense heating power of LPG, and the ultimate longevity of a heavy-duty full stainless steel build.

Download Our Brochure

Get the complete details of our products, features, and specifications in one downloadable brochure. Stay informed and make the right choice.
