Baking Equipment

2 Decks 4 Trays

Stacked Capacity, Professional Gas Precision

Double your baking output without expanding your footprint with the Rasbake RDG-204. This two-deck, four-tray gas oven features independent stainless steel burners and uniform heat electrolytic chambers, delivering rapid LPG heating and consistent artisan results in a space-saving vertical design.

1 Deck 3 Trays
RDG-103
1 Deck 2 Trays
RDG-102
1 Deck 1 Tray
RDG-101



    Overview



    The Rasbake RDG-204 Gas Deck Oven brings high-efficiency LPG performance to a professional 2-deck, 4-tray configuration. Designed with a premium 0.6mm brushed stainless steel front and a modern ergonomic oblique design, it combines a sleek industrial aesthetic with heavy-duty capability. The unit is mounted on an integrated 43 cm bottom rack with durable wheels for easy mobility within the bakery. The technical control interface allows operators to independently manage each deck's temperature up to 400°C and utilize the integrated 0–99 minute timer for absolute consistency across multiple batches.



    Technical Specifications



Capacity 2 Decks, 4 Trays (400 x 600 mm)
External Dimensions 1280 x 900 x 1495 mm
Chamber Dimensions (per deck) 870 x 630 x 225 mm
Power & Fuel 0.2 kW | 220V/50Hz | Fuel: LPG
Temperature Range Room Temp – 400°C
Timer Range 0–99 Minutes
Build 0.6mm Stainless Steel Front / 0.5mm Galvanized Sides
Bottom Rack Height 43 cm (includes wheels)
Weight 184 kg



    Key Features



▸ Precision Gas Heating



      Independent top and bottom stainless steel burners in each deck for exacting heat management.



▸ Enhanced Thermal Stability



      Uniform heat electrolytic chambers reinforced with iron sheets and high-grade door sealing for maximum heat retention.



▸ Advanced Airflow



      Adjustable side-plate blower fans maintain a balanced temperature profile across all baking levels.

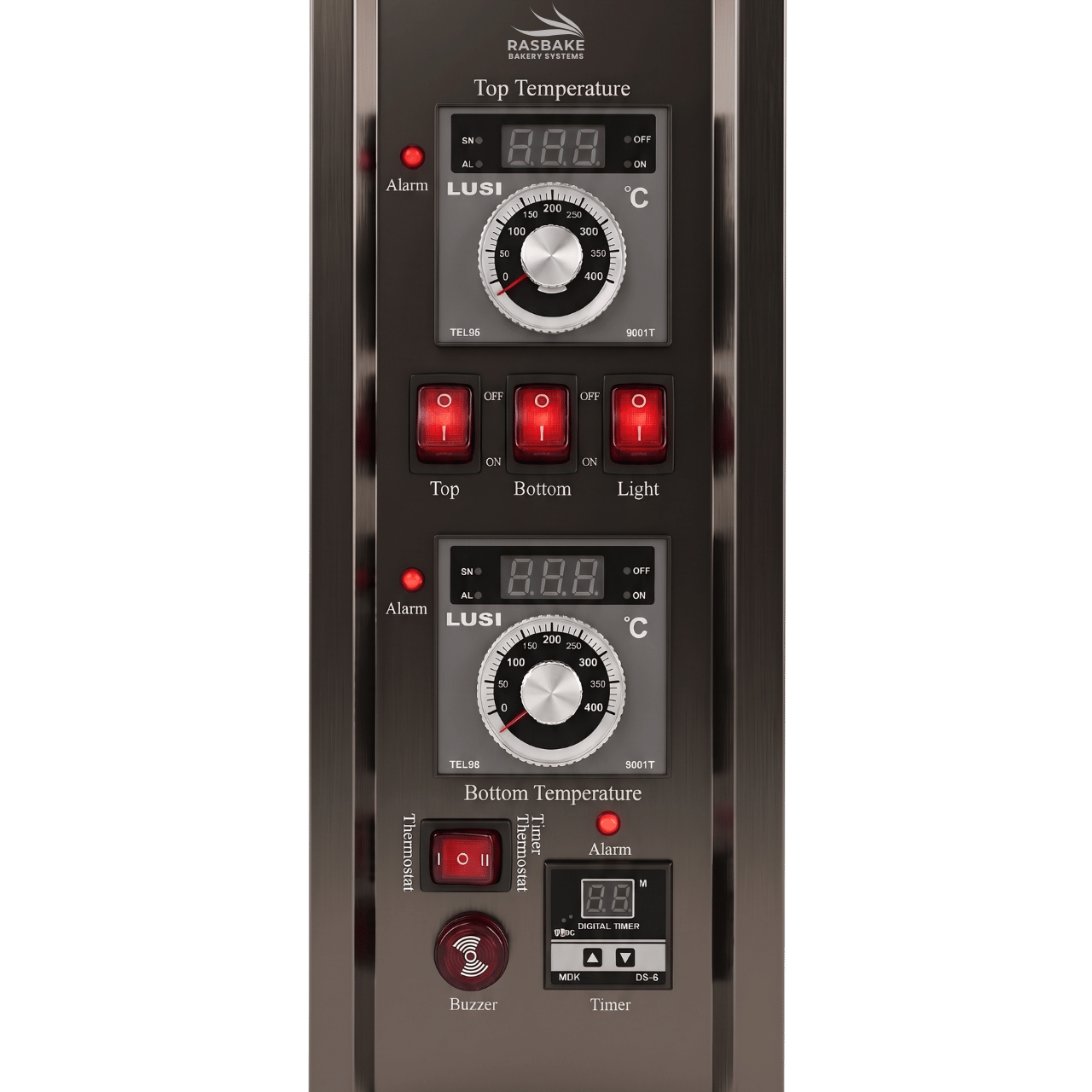

▸ Ergonomic Operation



      Large glass viewing windows and an oblique control design for seamless product monitoring and parameter adjustments.



▸ Commercial Safety



      Equipped with integrated overheat protection, a side lock mechanism, and waterproof power switches.



    Ideal Applications



    Perfect for growing artisan bakeries, busy cafes, and commercial kitchens that require expanded vertical tray capacity, the rapid recovery power of LPG, and precise independent deck control for a variety of breads and pastries.
