Baking Equipment

1 Deck 4 Trays

Industrial Durability, High-Yield Performance

Engineered for demanding production environments, the Rasbake RDG-104 combines an expansive four-tray capacity with a premium full stainless steel build. This powerful gas deck oven utilizes independent burners and a uniform heat electrolytic chamber to deliver consistent, high-volume artisan results.


1 Deck 3 Trays
RDG-103

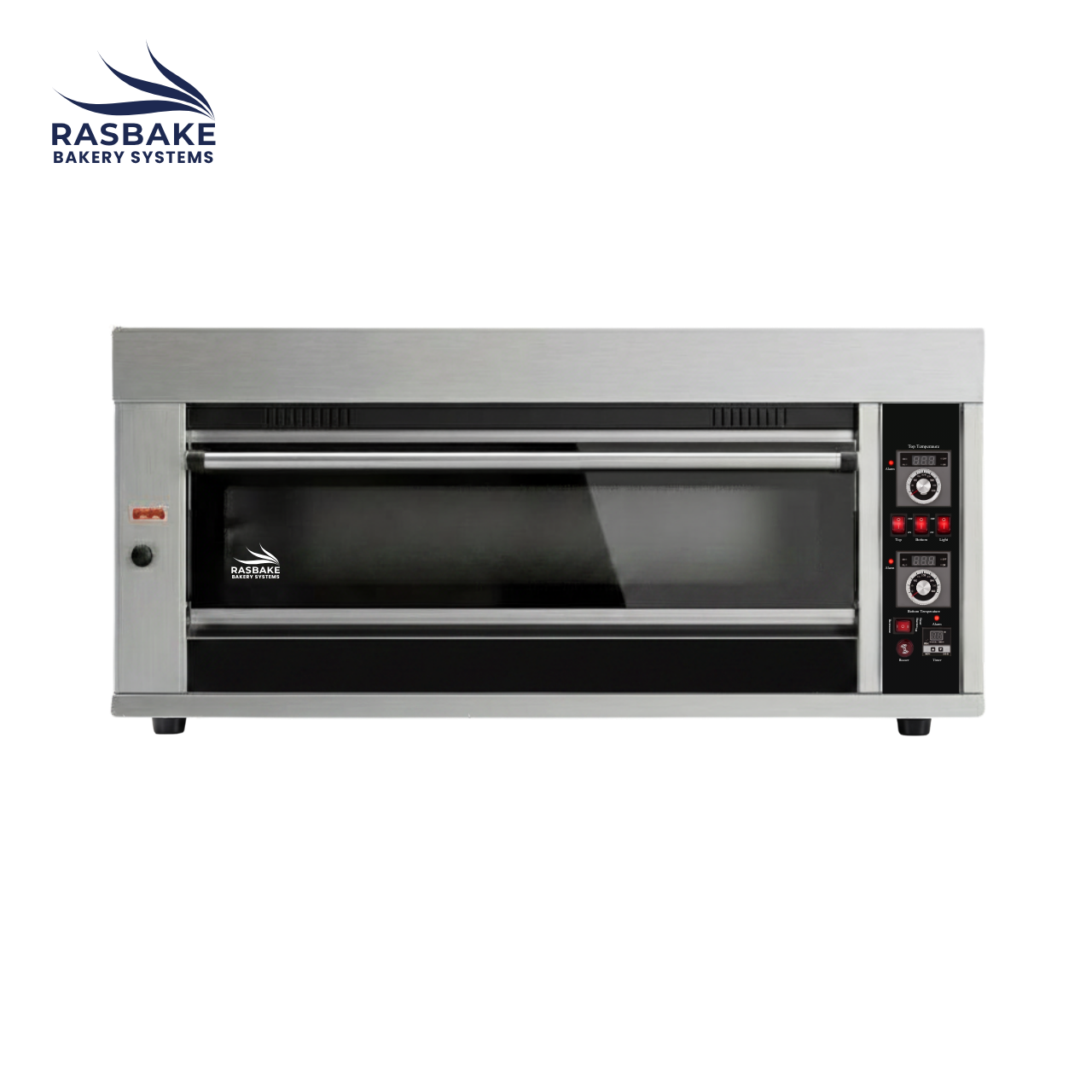

1 Deck 2 Trays
RDG-102

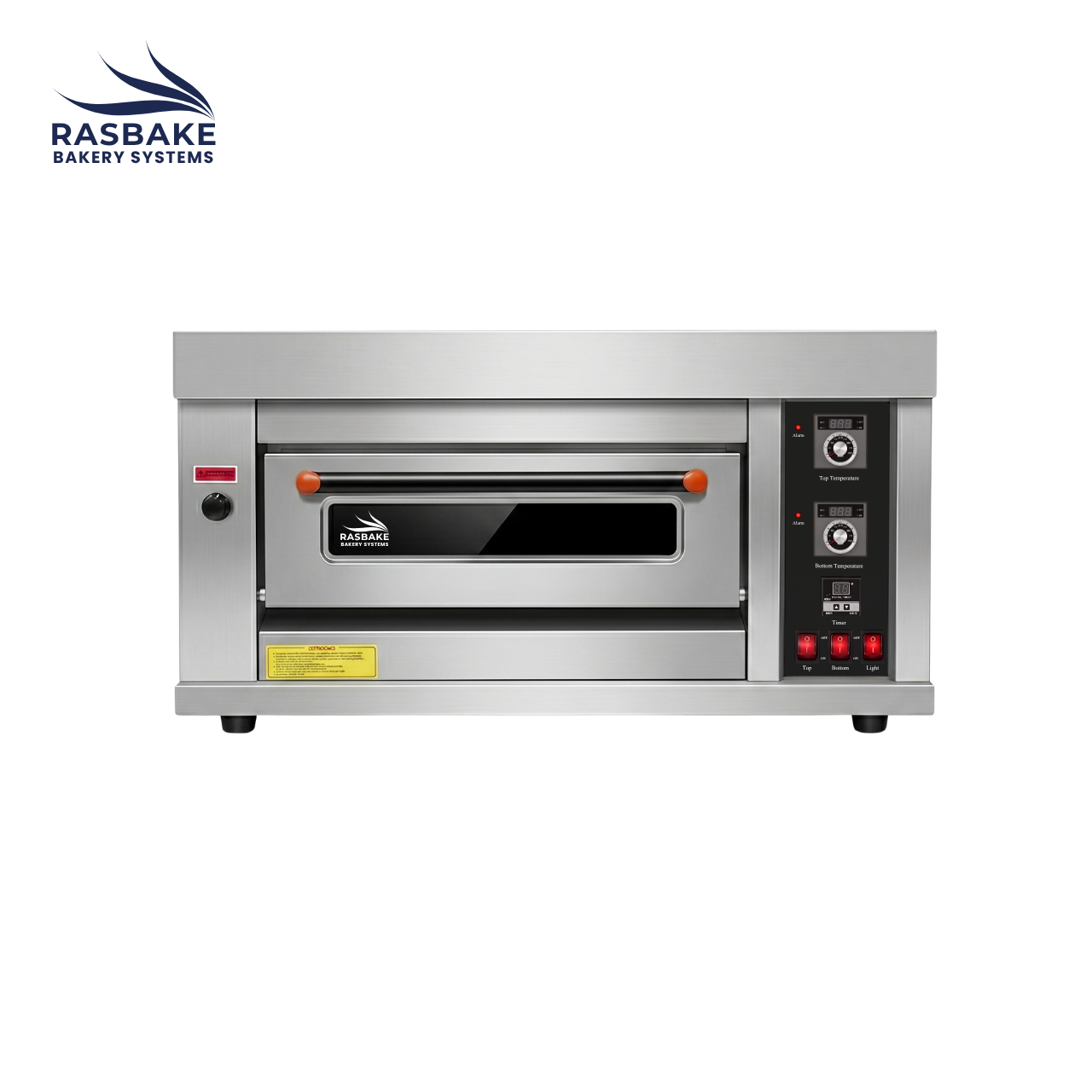

1 Deck 1 Tray
RDG-101

Overview

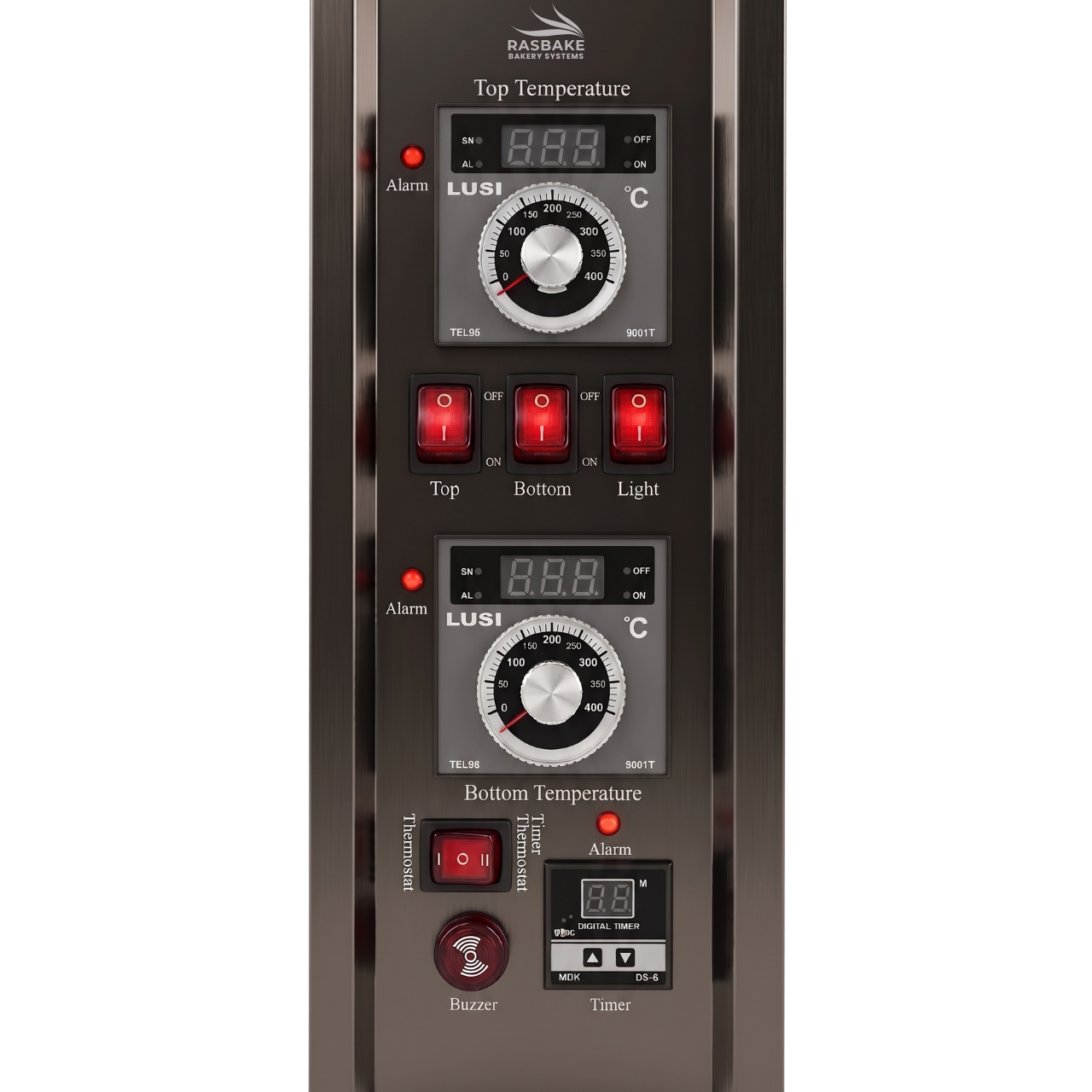

The Rasbake RDG-104 Gas Deck Oven is a heavy-duty solution designed for bakeries requiring maximum single-deck output. Featuring an upgraded 0.6mm full stainless steel chassis, this unit offers exceptional structural integrity and a modern industrial aesthetic. The technically precise control panel, built with an ergonomic oblique design, allows operators to effortlessly manage high-performance baking while ensuring the rapid heat recovery inherent to LPG-powered systems.

Technical Specifications

Capacity 1 Deck, 4 Trays (400 x 600 mm)
External Dimensions 1715 x 1060 x 675 mm
Chamber Dimensions 1305 x 830 x 225 mm
Power Requirements 0.1 kW (Controls/Fan) | 220V / 50Hz
Fuel Type LPG
Build 0.6mm Full Stainless Steel

Key Features

Independent Stainless Steel Burners: Separate top and bottom burners provide precise heat management for consistent baking results.

Adjustable Blower Fan System: Side-plate blower fan ensures a perfectly balanced temperature profile throughout the baking chamber.

Uniform Heat Electrolytic Chamber: Combined with high-grade door sealing and a side-lock mechanism for superior thermal efficiency and heat retention.

Integrated Safety Features: Includes overheat protection and a waterproof power switch for reliable and safe commercial operation.

Ideal Applications

Perfect for high-volume artisan bakeries and commercial kitchens that require uncompromised LPG performance, large single-deck tray capacity, and the enhanced durability of full stainless steel construction.

Download Our Brochure

Get the complete details of our products, features, and specifications in one downloadable brochure. Stay informed and make the right choice.
